Can I use MPU6050 6DOF Accelerometer Gyroscope Unit – GY-521 Sensor in an ESP32 or Arduino project?

Check the product description and datasheet for your exact board. Use AI Lab Compatibility Checker for parts we have metadata for — unknown electrical details are not treated as verified.

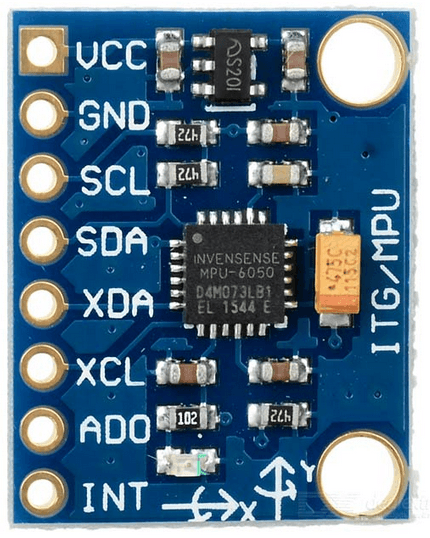

MPU6050 6DOF Accelerometer Gyroscope Unit – GY-521 Sensor — product photo from Robotics Kits Pakistan catalog

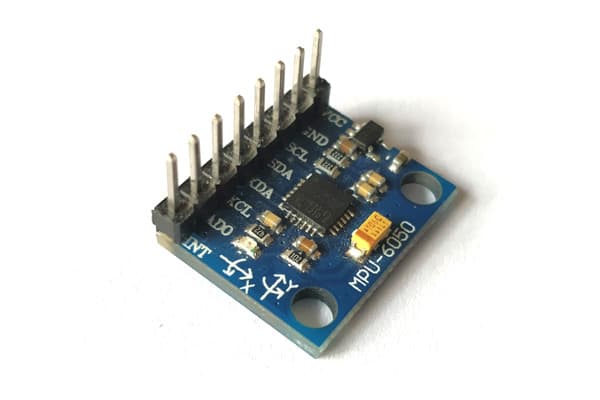

MPU6050 6DOF Accelerometer Gyroscope Unit – GY-521 Sensor image 2

MPU6050 6DOF Accelerometer Gyroscope Unit – GY-521 Sensor image 3

Project Kits

MPU6050 6DOF Accelerometer Gyroscope Unit – GY-521 Sensor

Name: MPU6050 6DOF Accelerometer Gyroscope Unit – GY-521 Sensor
Brand: Robotics Kits
SKU: project-kits-mpu6050-6dof-accelerometer-gyroscope
Price: 430 PKR
Availability: InStock

Rs 430

In stock (8)

COD & digital payment · Free shipping above store threshold · Shipping · Payments

Product details

The MPU6050 6DOF Accelerometer Gyroscope integrates a 3-axis gyroscope and 3-axis accelerometer. It utilizes the MPU-6050 motion processing chip with an onboard Digital Motion Processor (DMP). The module supports input voltages from 3.3V to 5V via an onboard LDO regulator. Communication occurs through a standard I2C interface compatible with various microcontrollers. Gyroscope full-scale ranges are programmable at ±250, ±500, ±1000, and ±2000 degrees per second. Accelerometer full-scale ranges are user-selectable at ±2g, ±4g, ±8g, and ±16g. It features 16-bit analog-to-digital converters for simultaneous sampling of all axes. The pin pitch is standard 2.54mm for easy breadboarding. This sensor provides precise 6-axis motion tracking data for complex applications

What can I build with it?

Classroom STEM labs and weekend maker builds
FYP demos when you want a ready parts set first

Plan a project with this part in AI Lab · Related problem guide

Compatibility notes

No verified pin/voltage metadata in our engineering catalog for this title. Treat electrical details as unverified until you check the datasheet.

Open Compatibility Checker

Specifications & features

Robotics & STEM Kits

Listed from catalog / supplier data. Treat as merchant-provided, not independently lab-verified, unless noted above.

Frequently asked questions

What is the price of MPU6050 6DOF Accelerometer Gyroscope Unit – GY-521 Sensor in Pakistan?

Live catalog price is Rs 430 (PKR). Checkout totals are always calculated in PKR.

Is MPU6050 6DOF Accelerometer Gyroscope Unit – GY-521 Sensor in stock at Robotics Kits?

Yes — catalog shows it available (8 units).

How can I order MPU6050 6DOF Accelerometer Gyroscope Unit – GY-521 Sensor?

Add to cart and checkout with COD or manual digital payment (Easypaisa, NayaPay, UBL bank transfer, JazzCash when enabled). We confirm wallet/bank payments after you enter the transaction ID.
